S35 Scissor Lifts - Extra Narrow, Double High, Double Wide
Series 35 Electric Scissor Lifts are the most versatile and popular family of lifts. They may be used in a wide variety of applications – such as pallet build-up and tear-down, part assembly and disassembly and conveyor systems – to improve worker ergonomics or enhance plant efficiencies. The Series 35 reduces worker fatigue and reduces the risk of back injuries. Series 35 offers a high quality, low cost lifting solution. Several models are available to meet all of your material handling needs! On this page you will find the Series 35 Extra Narrow, Double High and Double Wide Models.
***Please be aware that all prices do NOT include freight.***
We have had to disable our online checkout feature because most of our products are too large to automatically calculate the freight and need to be run manually. Please contact us via phone at 877-324-9990 or email us at sales@industrial-platforms.com with your ship to zip code for a complete quote including your freight cost.
S35 Scissor Lifts
Extra Narrow, Double High, & Double Wide Models
The Series 35 Scissor Lift Tables are simply the most proven, versatile, and popular lineup of lifts sold today. They're competitively priced, yet provide a significantly higher level of quality, safety, ease of use, and durability than any other lift on the market. And although they're available in standard options, Series 35 lift tables are most often customized because of their versatility and vast number of models and options. Travel ranges from 24" to 60" and capacity ranges from 1,500 to 15,000 lbs
The Series 35 family of scissor lift tables has been manufactured in America's heartland since 1982 and are designed to the highest standards of safety and reliability.
FEATURES AND BENEFITS:
Flexibility and Ease of Use
- More models and standard options than any other competitive lift table allows for easy customization to meet your specific needs.
- Standard controls are pre-wired and internal power unit is onboard. Installation simply includes lagging the lift to the ground and connecting electricity.
- Single-piece, steel reinforced legs and a 1/4- to 3/8-inch-thick steel platform make for extremely solid construction and easy adaptability.
- Exceptionally low lowered height allows on and off load flexibility.
Durability and Quality
- Joints, the most critical wear points in the lift, feature chrome-plated, 100,000 psi, ultimate-strength pins for premium load strength and long life
- Solid steel leg and added stiffeners provide optimal overall stability and straight, repeatable tracking of the rollers as the lift raises and lowers.
- Minimum 1/4-inch-thick steel-reinforced platform minimizes deck deflection, maximizes load stability, and greatly extends the life of the platform deck.
- On-board maintenance devices enable maintenance crews to safely and effectively block open the scissors during inspection and routine maintenance.
Safety
- Hydraulic velocity fuses completely stop lifts in the unlikely event of uncontrolled descent due to sudden hose rupture.
- Minimum 3:1 structural factor of safety makes these lifts the most structurally sound lift in the industry.
- Compliance with the following recognized standards:
- ANSI MH29.1 - Safety Requirements for Scissor Lifts
- NFPA 70 - National Electric Code
- ASTM - A36 - Structural Steel Standard
- ANSI Z535 - Safety Labeling Requirements
- AWS D.1 - Welding Standards
- Applicable portions of OSHA 29CFR1910 - General workplace safety
Series 35 Extra Narrow
Series 35 Extra Narrow line of lifts was developed to provide a stable, high capacity scissors lift for applications where a smaller lift footprint is required. With standard widths as narrow as 16", the Extra Narrow line of lifts maintains the high quality and performance characteristics of the rest of the Series 35 scissors lift family but was designed specifically to provide an economical solution for handling small, heavy loads – or when floor space or clearance with surrounding equipment is limited.
| Series 35 Extra Narrow | |||||||||||
| Model # | Travel | Capacity | Height | Minimum Platform Size | Maximum Platform Size | Raise/Lower Time | Electric Motor (HP) | Price | |||
| Low | High | W | L | W | L | ||||||
| S35-024-0025-EN | 24 | 2500 | 6½ | 30½ | 16 | 36 | 32 | 60 | 8 | 1.5 | $8,641.00 |
| S35-024-0040-EN | 24 | 4000 | 6½ | 30½ | 16 | 36 | 32 | 60 | 11 | 1.5 | $8,708.00 |
| S35-024-0060-EN | 24 | 6000 | 6½ | 30½ | 22 | 36 | 72 | 60 | 32 | 1.5 | $9,587.00 |
| S35-024-0080-EN | 24 | 8000 | 7 | 31 | 22 | 36 | 72 | 60 | 32 | 1.5 | $9,744.00 |
| S35-036-0025-EN | 36 | 2500 | 6½ | 42½ | 16 | 48 | 32 | 72 | 16 | 1.5 | $8,784.00 |
| S35-036-0040-EN | 36 | 4000 | 6½ | 42½ | 16 | 48 | 32 | 72 | 17 | 1.5 | $8,941.00 |
| S35-036-0060-EN | 36 | 6000 | 6½ | 42½ | 22 | 48 | 72 | 72 | 50 | 1.5 | $10,599.00 |
| S35-036-0080-EN | 36 | 8000 | 7 | 43 | 22 | 48 | 72 | 72 | 50 | 1.5 | $10,911.00 |
| S35-048-0025-EN | 48 | 2500 | 7 | 55 | 16 | 64 | 32 | 96 | 16 | 1.5 | $9,616.00 |
| S35-048-0040-EN | 48 | 4000 | 7 | 55 | 16 | 64 | 32 | 96 | 22 | 1.5 | $9,774.00 |
| S35-048-0060-EN | 48 | 6000 | 7 | 55 | 22 | 64 | 72 | 96 | 66 | 1.5 | $10,577.00 |
| S35-048-0080-EN | 48 | 8000 | 7½ | 55½ | 22 | 64 | 72 | 96 | 66 | 1.5 | $10,889.00 |
| *S35-058-0120-EN | 58 | 12000 | 12½ | 70½ | 28 | 90 | 90 | 120 | 60 | 5 | $32,309.00 |
| *S35-058-0150-EN | 58 | 15000 | 12½ | 70½ | 28 | 90 | 90 | 120 | 60 | 5 | $32,309.00 |
| S35-060-0025-EN | 60 | 2500 | 8 | 68 | 24 | 87 | 40 | 120 | 22 | 1.5 | $17,335.00 |
| S35-060-0040-EN | 60 | 4000 | 8 | 68 | 24 | 87 | 40 | 120 | 44 | 1.5 | $17,531.00 |
| S35-060-0060-EN | 60 | 6000 | 8 | 68 | 24 | 87 | 40 | 120 | 44 | 1.5 | $18,229.00 |
| *S35-060-0080-EN | 60 | 8000 | 12 | 72 | 26 | 90 | 90 | 120 | 44 | 5 | $31,194.00 |
| *S35-060-0100-EN | 60 | 10000 | 12 | 72 | 26 | 90 | 90 | 120 | 50 | 5 | $31,194.00 |
| *Remote 5HP power units come standard for these models | |||||||||||
| Options | |||||||||||
| PLATFORM OPTIONS | Price | ||||||||||
| Platforms larger than standard and up to maximum allowable size with straight sides for lifts 24" and 36" travel | contact for pricing | ||||||||||
| Platforms larger than standard and up to maximum allowable size with straight sides for lifts 48" and 60" travel | contact for pricing | ||||||||||
| Bevel toe guard oversize platform for 24" and 36" travel. Platform must be at least 8" wider and 8" longer than standard size. Lowered height increases to 8 1/2" | contact for pricing | ||||||||||
| Bevel toe guard oversize platform for 48" and 60" travel. Platform must be at least 8" wider and 8" longer than standard size. Lowered height increases to 8 1/2" | contact for pricing | ||||||||||
| Four-Way non skid tread plate | contact for pricing | ||||||||||
| Hanging toe indicator skirt (extends 8" below platform side, platform must be 2" wider and longer than standard for (4) sided protection.) | contact for pricing | ||||||||||
| Lifting eyes (2)with (1) shipping bolt. Eye bolts not included | contact for pricing | ||||||||||
| "V" Deck (Provide application data to Eng. at time of order) | contact for pricing | ||||||||||
| Min width 14" (add 2 weeks to lead time) | contact for pricing | ||||||||||
| Electric Tape Switch Guards, (requires oversizing platform a minimum of 4" to length and width, for (4) sided protection) | contact for pricing | ||||||||||
| Electric Toe Guards, (requires oversizing platform a minimum of 6" to length and width, for (4) sided protection) | contact for pricing | ||||||||||
| POWER UNIT OPTIONS | |||||||||||
| No Power unit & No Controls (deduct) | contact for pricing | ||||||||||
| Remote Super Torque 3/4 single Phase power unit ( doubles the raising time) | N/C | ||||||||||
| Connection hose for remote power unit. Specify length. | contact for pricing | ||||||||||
| Remote air operated power unit. Requires 90 psi and 110 cfm, clean plant air, includes hand valve and lubricator and 5' hose * | contact for pricing | ||||||||||
| Foot operated up/down air valve with guard for either internal or remote air power units, in lieu of hand valve | contact for pricing | ||||||||||
| Cover for remote power unit | contact for pricing | ||||||||||
| Non-flammable oil, water glycol with Viton seals in lift cylinders | contact for pricing | ||||||||||
| Food grade oil | contact for pricing | ||||||||||
| Biodegradable oil | contact for pricing | ||||||||||
| Quick disconnect for hydraulic connection, male and female | contact for pricing | ||||||||||
| Remote 5HP Super Torque, 230/460V/3PH-60CY,TENV, Intermittent duty motor, with 6 gallon polyethylene reservoir. ( 2X standard raising speed, reduces raising time 50% ) | contact for pricing | ||||||||||
| Remote, 5HP, 230/460V-3PH-60CY, Cont. Duty motor mounted on 11 gallon steel reservoir, (Approx. 1 1/2 times standard raising speed, reduces raising time 40%) | contact for pricing | ||||||||||
| Remote, 5HP, 230/460V-3PH-60CY, Cont. Running motor mounted on 11 gallon steel reservoir (Approx.1 1/2 times standard raising speed, reduces raising time 40%) | contact for pricing | ||||||||||
| ELECTRICAL OPTIONS | |||||||||||
| Control Signal: | |||||||||||
| Guarded, NEMA 1, up/down foot switch, (shipped loose) | contact for pricing | ||||||||||
| Upper / Lower Travel Limit switch (shipped loose) | contact for pricing | ||||||||||
| Upper / Lower Travel Limit switch (mounted and wired) | contact for pricing | ||||||||||
| Upper / Lower Travel Limit switch (mounted NOT wired) | contact for pricing | ||||||||||
| Magnetic mount push button station (shipped loose) | contact for pricing | ||||||||||
| NEMA-12, 4X wall mount up/down push button station (shipped loose) | contact for pricing | ||||||||||
| Pedestal for wall mount up/down pushbutton station (shipped loose) | contact for pricing | ||||||||||
| Control Panel: | |||||||||||
| No controls (push button, control panel, magnetic motor starter or transformer) | contact for pricing | ||||||||||
| 115 Volt AC down solenoid coil only mounted (controls by others) | contact for pricing | ||||||||||
| 24 Volt DC down solenoid coil only mounted ( controls by others) | contact for pricing | ||||||||||
| 115 Volt controls mounted & prewired (in lieu of standard 24 VAC) | contact for pricing | ||||||||||
| INTERNATIONAL VOLTAGE PACKAGES | |||||||||||
| 380V/3ph/50 hz, 1-1/2 HP motor (24VAC controls only)(643-0542-0X) | contact for pricing | ||||||||||
| 415V/3ph/50 hz, 1-1/2 HP motor (24VAC controls only)(643-0538-6X) | contact for pricing | ||||||||||
| 575V/3ph/60 hz, 1-1/2 HP motor (24VAC controls only)(643-0461-1X) | contact for pricing | ||||||||||
| ACCORDIAN SKIRT OPTIONS | |||||||||||
| Platform must be 6" longer and wider than standard - Not available on lifts with portability sets or beveled toe guards | |||||||||||
| Model 24S - EXN - 24" travel , standard skirt surrounds base and legs. | contact for pricing | ||||||||||
| Model 36S - EXN - 36" travel, standard skirt surrounds base and legs. | contact for pricing | ||||||||||
| Model 48S - EXN - 48" travel, standard skirt surrounds base and legs. | contact for pricing | ||||||||||
| Model 60S - EXN - 60" travel, standard skirt surrounds base and legs. | contact for pricing | ||||||||||
| HIGH CYCLE PACKAGE | |||||||||||
| High Cycle Package consisting of cam followers with sealed tapered roller bearings, replaceable hardened runner strips, special 'PTFE' filament wound bearings in all pivot points, adds 1/2" to heights (recommended for applications which exceed 100,000 cycles per year, also recommend continuous running power unit with this option) (MIN Platform width 20.5) | contact for pricing | ||||||||||
| Remote, 5HP, 230/460V-3PH-60CY, cont. running motor mounted on 11 gallon steel reservoir (approx. 1 1/2 times standard raising speed, reduces raising time 40%) | contact for pricing | ||||||||||
Series 35 Double High
The Double High models were developed to provide added vertical travel while minimizing footprint and platform sizes. Double High lifts are basically two Series 35 lifts, which have been welded on top of each other with a shared hydraulic system. These lifts provide a straightforward and economical solution to lifting applications which require vertical travels up to 96" and load capacities up to 10,000 pounds.
| Series 35 Double High | |||||||||||
| Model # | Travel | Capacity | Height | Minimum Platform Size | Maximum Platform Size |
Raise/Lower Time |
Electric Motor (HP) | Price | |||
| Low | High | W | L | W | L | ||||||
| S35-048-0020-DH | 48 | 2000 | 13 | 61 | 24 | 36 | 36 | 60 | 16 | 1.5 | $16,751.00 |
| S35-048-0034-DH | 48 | 3400 | 13 | 61 | 24 | 36 | 36 | 60 | 16 | 1.5 | $17,025.00 |
| S35-048-0054-DH | 48 | 5400 | 13 | 61 | 24 | 36 | 36 | 60 | 32 | 1.5 | $18,778.00 |
| S35-048-0070-DH | 48 | 7000 | 14 | 62 | 24 | 36 | 36 | 60 | 44 | 1.5 | $19,325.00 |
| S35-072-0019-DH | 72 | 1900 | 13 | 85 | 24 | 48 | 36 | 72 | 24 | 1.5 | $15,497.00 |
| S35-072-0034-DH | 72 | 3400 | 13 | 85 | 24 | 48 | 36 | 72 | 34 | 1.5 | $15,744.00 |
| S35-072-0054-DH | 72 | 5400 | 13 | 85 | 24 | 48 | 36 | 72 | 25 | 1.5 | $17,361.00 |
| *S35-072-0070-DH | 72 | 7000 | 14 | 86 | 24 | 48 | 36 | 72 | 35 | 5 | $17,855.00 |
| S35-096-0017-DH | 96 | 1700 | 14 | 110 | 24 | 64 | 36 | 96 | 32 | 1.5 | $16,400.00 |
| *S35-096-0032-DH | 96 | 3200 | 14 | 110 | 24 | 64 | 36 | 96 | 22 | 5 | $16,647.00 |
| *S35-096-0052-DH | 96 | 5200 | 14 | 110 | 24 | 64 | 36 | 96 | 33 | 5 | $18,264.00 |
| *S35-096-0070-DH | 96 | 7000 | 15 | 111 | 24 | 64 | 36 | 96 | 45 | 5 | $18,758.00 |
| *S35-116-0074-DH | 116 | 7400 | 25 | 141 | 32 | 90 | 48 | 100 | 72 | 5 | $55,673.00 |
| *S35-116-0103-DH | 116 | 10300 | 25 | 141 | 32 | 90 | 48 | 100 | 72 | 5 | $57,736.00 |
| S35-120-0014-DH | 120 | 1400 | 16 | 136 | 32 | 87 | 48 | 96 | 44 | 1.5 | $30,735.00 |
| S35-120-0028-DH | 120 | 2800 | 16 | 136 | 32 | 87 | 48 | 96 | 88 | 1.5 | $32,448.00 |
| S35-120-0040-DH | 120 | 4000 | 16 | 136 | 32 | 87 | 48 | 96 | 88 | 1.5 | $33,019.00 |
| *S35-120-0047-DH | 120 | 4700 | 24 | 144 | 32 | 90 | 48 | 100 | 72 | 5 | $50,991.00 |
| *S35-120-0055-DH | 120 | 5500 | 24 | 144 | 32 | 90 | 48 | 100 | 72 | 5 | $52,951.00 |
| *Remote 5HP power units come standard for these models due to the oil volume required on a DH. | |||||||||||
| Options | |||||||||||
| PLATFORM OPTIONS | Price | ||||||||||
| Platforms larger than standard and up to maximum allowable size with straight sides for lifts 24" and 36" travel. | contact for pricing | ||||||||||
| Platforms larger than standard and up to maximum allowable size with straight sides for lifts 48" and 60" travel. | contact for pricing | ||||||||||
| Bevel toe guard oversize platform for 24" and 36" travel. Platform must be at least 8" wider and 8" longer than standard size. | contact for pricing | ||||||||||
| Bevel toe guard oversize platform for 48" and 60" travel. Platform must be at least 8" wider and 8" longer than standard size. | contact for pricing | ||||||||||
| Four-Way non skid tread plate - top lift only | contact for pricing | ||||||||||
| Bolt conveyor to lift (conveyor supplied by others) | contact for pricing | ||||||||||
| Weld conveyor to lift (conveyor supplied by others) | contact for pricing | ||||||||||
| Removable 48" handrails on platform, platform size must be 10" over standard width or length depending on handrail location | contact for pricing | ||||||||||
| Permanent 48" handrails welded on platform | contact for pricing | ||||||||||
| Hanging toe indicator skirt (extends 8" below platform side, platform must be 2" wider and longer than standard for (4) sided protection.) | contact for pricing | ||||||||||
| Lifting eyes (2) per platform with (1) shipping bolt. Eye bolts not included. | contact for pricing | ||||||||||
| "V" Deck (Provide application data to Eng. at time of order) | contact for pricing | ||||||||||
| Electric Tape Switch Guards, (requires oversizing platform a minimum of 4" to length and width, for (4) sided protection) | contact for pricing | ||||||||||
| Electric Toe Guards, (requires oversizing platform a minimum of 6" to length and width, for (4) sided protection) | contact for pricing | ||||||||||
| GUIDE SYSTEM OPTIONS FOR 72" & 96" TRAVEL MODELS | |||||||||||
| Guide rail system with guide assemblies for one side or end, lags to floor and braces to upper level. | contact for pricing | ||||||||||
| Guide angle system with wear pads on (2) opposite platform corners and angles to mount to wall or in shaft-way. | contact for pricing | ||||||||||
| POWER UNIT OPTIONS ( per power unit) | |||||||||||
| No power unit & no controls (deduct) | contact for pricing | ||||||||||
| Remote Super Torque power unit (if not remote as standard) Oil and 8' hose included shipped loose. | contact for pricing | ||||||||||
| Connection hose for remote power unit. Specify length. | contact for pricing | ||||||||||
| Remote air operated power unit. Requires 70 psi and 95 cfm, clean plant air, includes hand valve and lubricator and 5' hose. * | contact for pricing | ||||||||||
| Foot operated up/down air valve with guard for air power units, in lieu of hand valve | contact for pricing | ||||||||||
| NEMA 4 WASHDOWN power unit and controls, includes a NEMA 4 control enclosure, mounted and prewired to power unit. Increases lowered height 1/2". | contact for pricing | ||||||||||
| Light duty water resistance-includes a standard Series 35 remote power unit, with a weather resistant power unit cover, NOT DESIGNED FOR WASHDOWN | contact for pricing | ||||||||||
| Non-flammable oil, Water glycol with Viton seals in lift cylinders | contact for pricing | ||||||||||
| Low Temp oil (-85deg) | contact for pricing | ||||||||||
| Food grade oil | contact for pricing | ||||||||||
| Biodegradable oil | contact for pricing | ||||||||||
| Remote 5HP Super Torque, 230/460V/3PH-60CY,TENV, Intermittent duty motor, with 6 gallon polyethylene reservoir. ( 2 times standard raising speed, reduces raising time 50% ) | contact for pricing | ||||||||||
| Remote, 5HP, 230/460V-3PH-60CY, Cont. Duty motor mounted on 11 gallon steel reservoir, (Approx. 1 1/2 times standard raising speed, reduces raising time 60%) | contact for pricing | ||||||||||
| Remote, 5HP, 230/460V-3PH-60CY, Cont. Running motor mounted on 11 gallon steel reservoir (Approx.1 1/2 times standard raising speed, reduces raising time 40%) | contact for pricing | ||||||||||

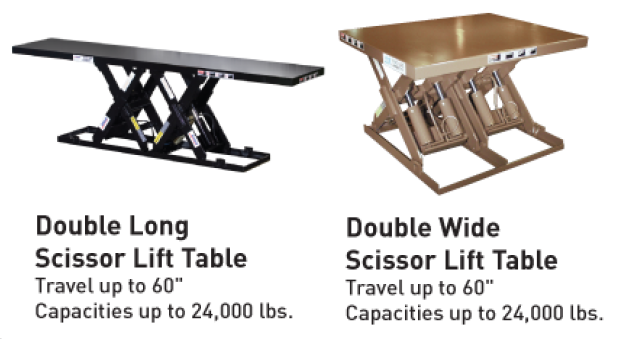

Series 35 Double Wide
Series 35 Double Wide models were developed to provide a low-travel, large platform solution – particularly for very wide loads or applications requiring extremely high-end load ratings. Double Wide lifts consist of two Series 35 lifts, which have been mounted side by side and share a common base frame, platform, and hydraulic system. These lifts provide a straightforward and economical solution to lifting applications which require platform widths up to a 96" and load capacities up to 24,000 pounds.
| Series 35 Double Wide | |||||||||||
| Model # | Travel | Capacity | Height | Minimum Platform Size | Maximum Platform Size | Raise/Lower Time | Electric Motor (HP) | Price | |||
| Low | High | W | L | W | L | ||||||
| S35-024-0040-DW | 24 | 4000 | 6½ | 30½ | 48 | 36 | 72 | 60 | 16 | 1.5 | contact for pricing |
| S35-024-0064-DW | 24 | 6400 | 6½ | 30½ | 48 | 36 | 72 | 60 | 22 | 1.5 | contact for pricing |
| S35-024-0096-DW | 24 | 9600 | 6½ | 30½ | 48 | 36 | 72 | 60 | 32 | 1.5 | contact for pricing |
| *S35-024-0128-DW | 24 | 12800 | 7¼ | 31¼ | 48 | 36 | 72 | 60 | 22 | 5 | contact for pricing |
| S35-036-0040-DW | 36 | 4000 | 6½ | 42½ | 48 | 48 | 72 | 72 | 24 | 1.5 | contact for pricing |
| S35-036-0064-DW | 36 | 6400 | 6½ | 42½ | 48 | 48 | 72 | 72 | 34 | 1.5 | contact for pricing |
| *S35-036-0096-DW | 36 | 9600 | 6½ | 42½ | 48 | 48 | 72 | 72 | 25 | 5 | contact for pricing |
| *S35-036-0128-DW | 36 | 12800 | 7¼ | 43¼ | 48 | 48 | 72 | 72 | 35 | 5 | contact for pricing |
| S35-048-0040-DW | 48 | 4000 | 7 | 55 | 48 | 64 | 72 | 96 | 32 | 1.5 | contact for pricing |
| *S35-048-0064-DW | 48 | 6400 | 7 | 55 | 48 | 64 | 72 | 96 | 22 | 5 | contact for pricing |
| *S35-048-0096-DW | 48 | 9600 | 7 | 55 | 48 | 64 | 72 | 96 | 33 | 5 | contact for pricing |
| *S35-048-0128-DW | 48 | 12800 | 7¾ | 55¾ | 48 | 64 | 72 | 96 | 45 | 5 | contact for pricing |
| *S35-060-0040-DW | 60 | 4000 | 8 | 68 | 64 | 87 | 96 | 120 | 22 | 5 | contact for pricing |
| *S35-060-0064-DW | 60 | 6400 | 8 | 68 | 64 | 87 | 96 | 120 | 44 | 5 | contact for pricing |
| *S35-060-0096-DW | 60 | 9600 | 8 | 68 | 64 | 87 | 96 | 120 | 44 | 5 | contact for pricing |
| *S35-060-0128-DW | 60 | 12800 | 12 | 72 | 64 | 90 | 96 | 120 | 46 | 5 | contact for pricing |
| *S35-060-0160-DW | 60 | 16000 | 12 | 72 | 64 | 90 | 96 | 120 | 46 | 5 | contact for pricing |
| *S35-060-0192-DW | 60 | 19200 | 12½ | 72½ | 64 | 90 | 96 | 120 | 72 | 5 | contact for pricing |
| *S35-060-0240-DW | 60 | 24000 | 12½ | 72½ | 64 | 90 | 96 | 120 | 72 | 5 | contact for pricing |
| *Remote 5HP power units come standard for these models due to oil volume required on a DW / STD Power for 58/60 travel models is a remote 5HP heavy duty (4.5gpm). | |||||||||||
| Options | |||||||||||
| PLATFORM OPTIONS | | Price | |||||||||
| Platforms larger than standard and up to maximum allowable size with straight sides. (24-36 travel) | | contact for pricing | |||||||||
| Platforms larger than standard and up to maximum allowable size with straight sides. (48-60 travel) | | contact for pricing | |||||||||
| Bevel toe guard oversize platform. Platform must be at least 8" wider and 8" longer than standard size. Lowered height increases to 8 1/2" | | contact for pricing | |||||||||
| Four-Way safety diamond tread plate | | contact for pricing | |||||||||
| Bolt conveyor to lift (conveyor supplied by others) | | contact for pricing | |||||||||
| Weld conveyor to lift (conveyor supplied by others) | | contact for pricing | |||||||||
| Removable 48" handrails on platform, platform size must be 10" over standard width or length depending on handrail location | | contact for pricing | |||||||||
| Permanent 48" handrails welded on platform | | contact for pricing | |||||||||
| Hanging toe indicator skirt (extends 8" below platform side, platform must be 2" wider and longer than standard for (4) sided protection.) | | contact for pricing | |||||||||
| Lifting eyes (2) per platform with (1) shipping bolt. Eye bolts not included. | | contact for pricing | |||||||||
| "V" Deck (provide application data to engineer at time of order) | | contact for pricing | |||||||||
| Electric Tape Switch Guards, (requires oversizing platform a minimum of 4" to length and width, for (4) sided protection) | | contact for pricing | |||||||||
| Electric Toe Guards, (requires oversizing platform a minimum of 6" to length and width, for (4) sided protection) | | contact for pricing | |||||||||
| POWER UNIT OPTIONS | |||||||||||
| No power unit & no controls (deduct) | | contact for pricing | |||||||||
| Remote Super Torque 3/4 or 1 1/2 hp. power unit (for models with standard internal power units) includes oil and 8' hose shipped loose | | contact for pricing | |||||||||
| Connection hose for remote power unit. Specify length. | | contact for pricing | |||||||||
| Remote air operated power unit. Requires 90 psi and 110 cfm, clean plant air, includes hand valve and lubricator and 5' hose. | | contact for pricing | |||||||||
| Internally mounted air operated power unit. Requires 90 psi and 110 cfm clean plant air, increases lowered height to 8 1/2", includes hand valve & lubricator* | | contact for pricing | |||||||||
| Foot operated up/down air valve with guard for either internal or remote air power units, in lieu of hand valve | | contact for pricing | |||||||||
| Cover for remote power unit | | contact for pricing | |||||||||
| Internally mounted NEMA 4 WASHDOWN power unit and controls, includes a NEMA 4 control enclosure, prewired to power unit. Lowered height increases to 7" on 6 1/2" models. (Not available on 24" travel or lifts specified with remote power units) | | contact for pricing | |||||||||
| Light duty water resistance-includes a standard Series 35 remote power unit, with a weather resistant power unit cover, NOT DESIGNED FOR WASHDOWN | | contact for pricing | |||||||||
| Non-flammable oil, Water glycol with Viton seals in lift cylinders | | contact for pricing | |||||||||
| Low temp oil (-85deg) | | contact for pricing | |||||||||
| Food grade oil | | contact for pricing | |||||||||
| Biodegradable oil | | contact for pricing | |||||||||
| Remote 5HP Super Torque, 230/460V/3PH-60CY,TENV, Intermittent duty motor, with 6 gallon polyethylene reservoir. ( 2 times standard raising speed, reduces raising time 50% ) | | contact for pricing | |||||||||
| Remote, 5HP, 230/460V-3PH-60CY, Cont. Duty motor mounted on 11 gallon steel reservoir, (Approx. 1 1/2 times standard raising speed, reduces raising time 60%) | | contact for pricing | |||||||||
| Remote, 5HP, 230/460V-3PH-60CY, Cont. Running motor mounted on 11 gallon steel reservoir (Approx.1 1/2 times standard raising speed, reduces raising time 40%) | | contact for pricing | |||||||||
| ELECTRICAL OPTIONS | |||||||||||
| Control Signal: | |||||||||||
| Guarded, NEMA 1, up/down foot switch (shipped loose) | | contact for pricing | |||||||||
| Upper / Lower Travel Limit switch (shipped loose) | | contact for pricing | |||||||||
| Upper / Lower Travel Limit switch (mounted NOT wired) | | contact for pricing | |||||||||
| Magnetic mount push button station (shipped loose) | | contact for pricing | |||||||||
| NEMA-12, 4X wall mount up/down push button station (shipped loose) | | contact for pricing | |||||||||
| Pedestal for wall mount up/down push button station (shipped loose) | | contact for pricing | |||||||||
| Control Panel: | |||||||||||
| 115 Volt AC down solenoid coil only mounted (controls by others) | | contact for pricing | |||||||||
| 24 Volt DC down solenoid coil only mounted ( controls by others) | | contact for pricing | |||||||||
| 115 Volt controls mounted & prewired (in lieu of standard 24 VAC) | | contact for pricing | |||||||||
| ACCORDIAN SKIRT OPTIONS | |||||||||||
| Platform must be 6" longer and wider than standard - Not available on lifts with beveled toe guards | |||||||||||
| Model 24S - DW - 24" travel , standard skirt surrounds base and legs, 54" x 42" outside dimension | | contact for pricing | |||||||||
| Model 36S - DW - 36" travel, standard skirt surrounds base and legs, 54" x 54" outside dimension | | contact for pricing | |||||||||
| Model 48S - DW - 48" travel, standard skirt surrounds base and legs, 54" x 70" outside dimension | | contact for pricing | |||||||||
| BASEFRAME ACCESSORIES | |||||||||||
| Built up base frame (to achieve specified lowered height up to 24" in addition to full standard travel.) | | contact for pricing | |||||||||
| Fork Truck Pockets (2 way) for lift access from either long side of lift (increases lowered height approx. 4") | | contact for pricing | |||||||||
| For (4) way access to Fork Truck pockets add an ADDITIONAL | | contact for pricing | |||||||||
Please call for additional options or custom designs.
Fabrication Authorities International, LLC. Is your new “total access” solution.
We can customize most Industrial Maintenance Platforms to your specific needs.
Please call (877) 324-9990 or (727) 324-4620 or (727) FAI-INC-0
Fax us your request at (888) 909-6780
Email us at sales@industrial-platforms.com
