Clean Room Ladder
Clean Room Ladder
Our clean room platforms stand up to the most stringent clean-room requirements. Our products will last years so that you can have clean, safe work environment. These step ladders are perfect for use in the food and beverage industry, semiconductor manufacturing, biotechnology, the life sciences, and any other field that is sensitive to environmental contamination.
***Please be aware that all prices do NOT include freight.***
We have had to disable our online checkout feature because most of our products are too large to automatically calculate the freight and need to be run manually. Please contact us via phone at 877-324-9990 or email us at sales@industrial-platforms.com with your ship to zip code for a complete quote including your freight cost.
Clean Room Ladder

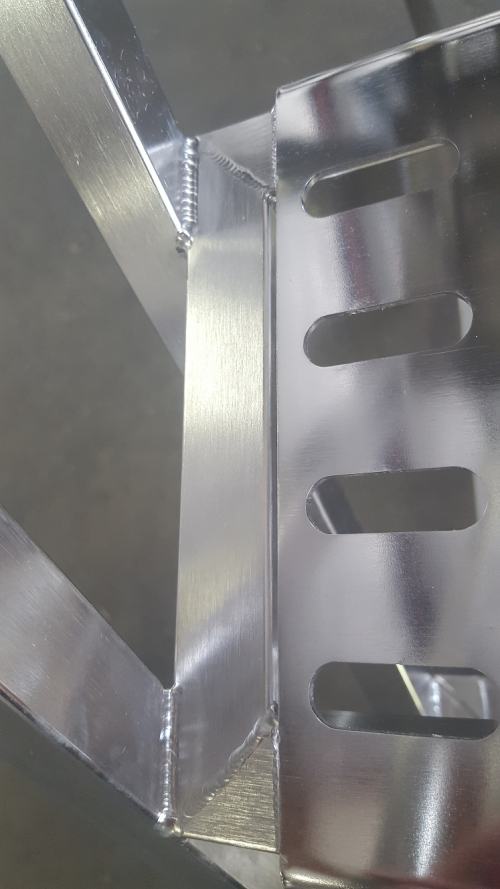

These high grade Clean Room work platforms are manufactured for all-purpose cleanroom use. Manufactured from 304 grade stainless steel (with an optional 316 upgrade), these step ladders are suitable for all-purpose cleanroom use. Each ladder is made to order based on your specifications, including size, dimension, and purpose. We will work through the design process with you to ensure that every detail of your custom requirements can be met. Our range of capabilities includes consulting, engineering & design, cutting, bending, welding, machining and finishing, handling and logistics for critical-environment access solutions.
Our 304 Grade Stainless Work Platforms are ideal for performing maintenance tasks (like replacing filters) in a clean room environment. The maximum load capacity is 500 lbs. (Call for more!) Plate mounted casters are standard, made entirely of stainless steel to eliminate contamination sources, however, we also offer spring loaded casters. These high performance access solutions have a very high quality design and finish to meet your requirements.
The 14" and 28" Deep top step ensures plenty of room to safely accommodate workers and tools (Call for more!) 36"H Safety rails further enhance personnel safety. Standard models include diamond plate treads; other designs are available on a custom basis.
Custom designs, passivation and electropolishing options available. Call for pricing!
Features:
| • 28"D Top Platform option | • Manufactured from 304 grade stainless steel, 316 upgrade option |
| • 14"D Top Platform option | • #4 Finish, 180 Grit |
| • Buffed welds | • 500 lbs capacity (Call for more!) |
| • Diamond plate tread standard | • 36"H handrails with 18" mid-rails |
| • Plate mounted casters standard | • Spring loaded casters (Optional) |
| • (2) Swivel & (2) Rigid 3" Casters | • Electropolish and passivation available |
*All measurements in table below are represented in inches, pounds and $USD
| Clean Room Ladder 14" D Platform | |||||||
| Model # | # Steps | Height | Base Size | Weight | Price | ||
| Platform | Overall | W | D | ||||
| 24"W Treads | |||||||
| CR-PM302414 | 3 | 30 | 66 | 26 | 35 | 90 | $4,410.00 |
| CR-PM402414 | 4 | 40 | 76 | 26 | 42 | 110 | $4,830.00 |
| CR-PM502414 | 5 | 50 | 86 | 26 | 49 | 122 | $5,390.00 |
| CR-PM602414 | 6 | 60 | 96 | 26 | 56 | 140 | $5,950.00 |
| 30"W Treads | |||||||
| CR-PM303014 | 3 | 30 | 66 | 32 | 35 | 105 | $4,900.00 |
| CR-PM403014 | 4 | 40 | 76 | 32 | 42 | 120 | $5,460.00 |
| CR-PM503014 | 5 | 50 | 86 | 32 | 49 | 140 | $5,880.00 |
| CR-PM603014 | 6 | 60 | 96 | 32 | 56 | 160 | $6,440.00 |
| 36"W Treads | |||||||
| CR-PM303614 | 3 | 30 | 66 | 38 | 35 | 115 | $5,600.00 |
| CR-PM403614 | 4 | 40 | 76 | 38 | 42 | 130 | $6,300.00 |
| CR-PM503614 | 5 | 50 | 86 | 38 | 49 | 158 | $6,580.00 |
| CR-PM603614 | 6 | 60 | 96 | 38 | 56 | 180 | $6,860.00 |
| Caster Options | |||||||
| -CR | Spring lift caster system | contact for pricing | |||||
| **Add -CR to part number when placing your order for caster options. | |||||||
| * For Optional Passivation and Electropolish Dipping add 30% to current price * | |||||||
| Clean Room Ladder 28" D Platform | ||||||||
| Model # | # Steps | Height | Base Size | Weight | Price | |||
| Platform | Overall | W | D | |||||
| 24"W Treads | ||||||||
| CRP-202428 | 2 | 20 | 56 | 26 | 34 | 80 | $5,040.00 | |
| CRP-302428 | 3 | 30 | 66 | 26 | 40 | 90 | $5,460.00 | |
| CRP-402428 | 4 | 40 | 76 | 26 | 46 | 110 | $5,740.00 | |
| CRP-502428 | 5 | 50 | 86 | 26 | 52 | 122 | $6,160.00 | |
| CRP-602428 | 6 | 60 | 96 | 26 | 58 | 140 | $6,720.00 | |
| 30"W Treads | ||||||||
| CRP-203028 | 2 | 20 | 56 | 32 | 34 | 98 | $5,460.00 | |
| CRP-303028 | 3 | 30 | 66 | 32 | 40 | 105 | $5,810.00 | |
| CRP-403028 | 4 | 40 | 76 | 32 | 46 | 120 | $6,160.00 | |
| CRP-503028 | 5 | 50 | 86 | 32 | 52 | 140 | $6,440.00 | |
| CRP-603028 | 6 | 60 | 96 | 32 | 58 | 160 | $6,860.00 | |
| 36"W Treads | ||||||||
| CRP-203628 | 2 | 20 | 56 | 38 | 34 | 100 | $5,880.00 | |
| CRP-303628 | 3 | 30 | 66 | 38 | 40 | 115 | $6,230.00 | |
| CRP-403628 | 4 | 40 | 76 | 38 | 46 | 130 | $6,580.00 | |
| CRP-503628 | 5 | 50 | 86 | 38 | 52 | 158 | $6,790.00 | |
| CRP-603628 | 6 | 60 | 96 | 38 | 58 | 180 | $7,000.00 | |
| Caster Options | ||||||||
| -CR | Spring lift caster system | contact for pricing | ||||||
| **Add -CR to part number when placing your order for caster options. | ||||||||
| * For Optional Passivation and Electropolish Dipping add 30% to current price * | ||||||||
If you have unique requirements, Fabrication Authorities International has the engineering expertise and manufacturing capability to provide you with a custom work platform or industrial ladder. Whether you need to an existing product altered or upgraded, or a completely new product engineered, fabricated, and delivered, Fabrication Authorities International has the knowledge and experience to get the job done. We have designed and built custom work platforms and ladders to help our customers with all of their access needs. Contact our friendly and knowledgeable sales technicians for a professional consultation today!
Please call for additional options or custom designs.
Fabrication Authorities International, LLC. Is your new “total access” solution.
We can customize most Industrial Maintenance Platforms to your specific needs.
Please call (877) 324-9990 or (727) 324-4620 or (727) FAI-INC-0.
Fax us your request at (888) 909-6780.
Email us at sales@industrial-platforms.com
