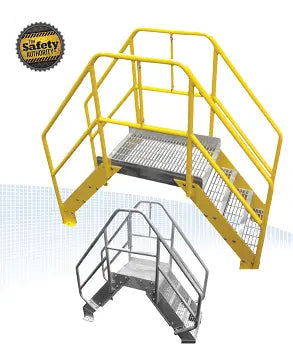

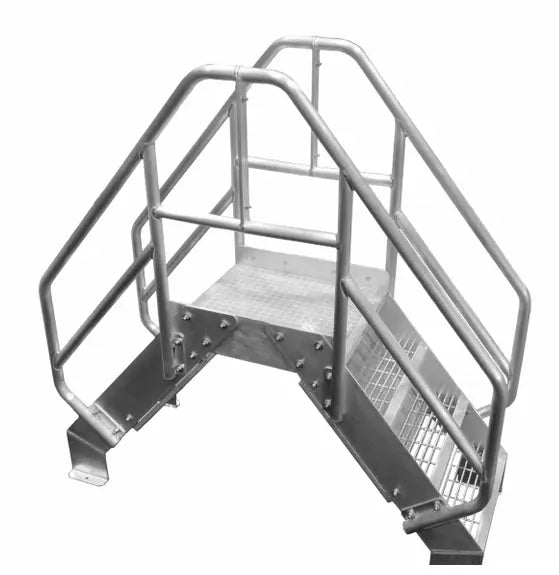

Aluminum Crossover Ladder
Aluminum Crossover Ladder
Aluminum Crossover Ladder Our Aluminum Crossover Ladder will be the first and last crossover you’ll ever buy! It is offered in 20 design configurations and features a stair angle of 50 degrees. Our robust design translates into greater stability and safety for your employees! These Aluminum Crossover Work Platforms meet or exceed OSHA 1910.29 and ANSI A14.7 standards. Choose from 2 tread options- serrated grating or diamond plate tread. The 42"H handrail with 21" mid-rails and 4" toe-boards offers excellent fall protection and the serrated bar grating provides superior slip resistance. Custom options and designs available! Features: • High grade aluminum construction • 500 lbs.. . .
Aluminum Crossover Ladder
Our Aluminum Crossover Ladder will be the first and last crossover you’ll ever buy! It is offered in 20 design configurations and features a stair angle of 50 degrees. Our robust design translates into greater stability and safety for your employees!
These Aluminum Crossover Work Platforms meet or exceed OSHA 1910.29 and ANSI A14.7 standards. Choose from 2 tread options- serrated grating or diamond plate tread.
The 42"H handrail with 21" mid-rails and 4" toe-boards offers excellent fall protection and the serrated bar grating provides superior slip resistance. Custom options and designs available!
Features:
| • High grade aluminum construction | • 500 lbs. capacity |
| • Lightweight, non-sparking and non-magnetic design | • Also available in Steel and Stainless Steel |
| • 50 degree angle of slope allows forward descent | • Serrated bar grating or diamond plate tread options |
| • 42"H handrails with 21" mid-rails and 4" toe-boards | • Aluminum mounting plates included |
| • Custom sizes available upon request | • OSHA and ANSI compliant design |
Feel the safety, comfort and durability of our Aluminum Crossover Ladders with every step you take. Our crossover ladders are popular with material handling companies, in the oil and gas field, and many other industries.
Benefits:
 |
 |
Tread Options:

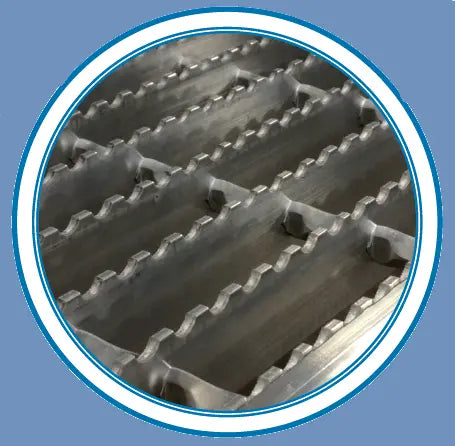

Serrated Bar Grating Diamond Plate
 |
 |
**All measurements in table below are represented in inches, pounds and $USD.
| Aluminum Crossover Ladder | |||||||||
| # Steps | Clear Span |
Platform Height |
Clear Height |
Weight | Base Length |
Serrated Bar Grating Tread | Diamond Plate Tread | ||
| Model # | Price | Model # | Price | ||||||
| 24"W Treads | |||||||||
| 3 | 24 | 32 | 31 | 120 | 78 | BE3001G | contact for pricing | BE3001D | contact for pricing |
| 4 | 24 | 40 | 39 | 135 | 91 | BE3002G | contact for pricing | BE3002D | contact for pricing |
| 5 | 24 | 48 | 47 | 155 | 104 | BE3003G | contact for pricing | BE3003D | contact for pricing |
| 6 | 24 | 56 | 55 | 170 | 118 | BE3004G | contact for pricing | BE3004D | contact for pricing |
| 7 | 24 | 64 | 63 | 171 | 131 | BE3038G | contact for pricing | BE3038D | contact for pricing |
| 36"W Treads | |||||||||
| 3 | 36 | 32 | 31 | 135 | 90 | BE3005G | contact for pricing | BE3005D | contact for pricing |
| 4 | 36 | 40 | 39 | 150 | 103 | BE3006G | contact for pricing | BE3006D | contact for pricing |
| 5 | 36 | 48 | 47 | 170 | 116 | BE3007G | contact for pricing | BE3007D | contact for pricing |
| 6 | 36 | 56 | 55 | 185 | 130 | BE3008G | contact for pricing | BE3008D | contact for pricing |
| 7 | 36 | 64 | 63 | 200 | 143 | BE3037G | contact for pricing | BE3037D | contact for pricing |
Fabrication Authorities International can custom fabricate virtually any type of Aluminum Cross Over Ladder. Our expertise includes in-house research and development, fully integrated manufacturing and an extensive materials line. With years of design, engineering and manufacturing experience, our dedicated staff can assist you from concept to completion in a timely fashion. All of our ladders are made in the USA and meet OSHA and ANSI 3124 standards.
Please call for additional options or custom designs.
Fabrication Authorities International, LLC. Is your new “total access” solution.
We can customize most Industrial Maintenance Platforms to your specific needs.
Please call (877) 324-9990 or (727) 324-4620 or (727) FAI-INC-0
Fax us your request at (888) 909-6780
Email us at sales@industrial-platforms.com
If you are looking for a custom product, please include the model number closest to what you need, along with your custom requirements!
For a complete quote including freight, include your shipping address or zip code. Freight quotes are valid for 30 days
