HA 32 CJ Articulating Electric Boom Lift

The HA 32 CJ Articulating Boom Lift is considered to be a highly versatile boom lift and is often used for industrial applications. With a compact stowed height of 6 ft. 6 in. allows for easy passage through standard doorways with a tight turning radius.

***Please be aware that all prices do NOT include freight. We have had to disable our online checkout feature because most of our products are too large to automatically calculate the freight and need to be run manually. Please contact us via phone at 877-324-9990 or email us at with your ship to zip code for a complete quote including your freight cost.





If you are looking for a custom product, please include the model number closest to what you need, along with your custom requirements!
For a complete quote including freight, include your shipping address or zip code. Freight quotes are valid for 30 days
Upload a specification sheet, drawing or a rendering for your estimate.

HA 32 CJ Articulating Boom Lift

 Fabrication Authorities International offers you innovative handling solutions in the construction, agricultural, and industrial markets with our telescopic boom lifts. From compact to rotating models, we can provide you with a wide variety of unique handling solutions.

 With a 37ft 10in working height, our HA 32 CJ Electric Articulating Boom Lifts are the ideal solution for all of your loading, placing and industrial applications!


 • Increased Productivity  • Simultaneous drive and rotation
 • Tight turning radius  • Zero tail-swing
 • Compact stowed height passes through doorways  • 3 ft 11 in width
 • 37 ft 10 in working height  • 15 ft 7 in up and over clearance
 • 3.7mph max drive speed  • 25% gradeability


 HA 32 CJ Articulating Boom Lift  Features:

Excellent maneuverability
Simultaneous drive and rotation
Tight turning radius
Zero tail-swing
Compact stowed height passes through doorways
3 ft 11 in width
Optimized productivity
Long working cycles
Suitable for indoor and outdoor use

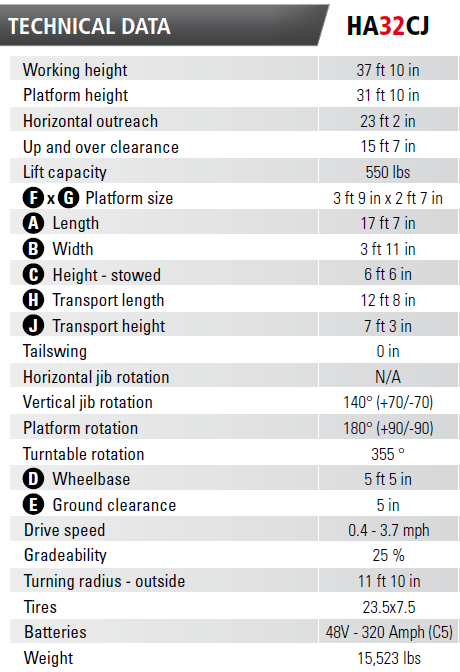

HA 32 CJ Technical Specifications

Working height 37 ft 10 in
Platform height 31 ft 10 in
Platform size 3 ft 9 in x 2 ft 7 in
Horizontal outreach 23 ft
Up and over clearance 15 ft 7 in
Width 3 ft 11 in
Length 17 ft 7 in
Gradeability (%) 25
Power source 48 V - 320 amp-hr (C5)
Weight (lbs) 15,370


 HA 32 CJ Articulating Boom Lift  HA 32 CJ Articulating Boom Lift
 HA 32 CJ Articulating Boom Lift


 • Ergonomic control panels  • Battery charge indicators
 • Automatic platform leveling  • Solid non-marking tires
 • 2-wheel drive  • 2-wheel steer
 • Deep cycle batteries  • On-board charger battery 48V - 50 A
 • Horn  • Hour meter
 • Mechanical turret slewing hook  • Emergency hand pump
 • Safe to use in winds up to 45 km/h 28 mph  • Towing hooks and lifting eyes



 - Full traction batteries  - Auxiliary power in platform
 - Air line to platform  - Fluorescent tube caddy
 - Orange safety cone holder  - Self-closing swing gate
 - Flashing light  - Working light
 - Electric outlet in the platform   - Custom platform sizes


Please call for additional options or custom designs.
