BAR Series Passenger Ramp
BAR Series Passenger Ramp
Our BAR Series Passenger Switchback Ramps provide a path in the form of switchbacks from the ground to the aircraft doorsill height. This offers access to aircraft for all passengers, creating a total cost effective boarding solution without the need for traditional Airstairs or high-lift equipment and the associated costs. Custom built per order, we offer a variety of sizes and configurations to suit your needs!
***Please be aware that all prices do NOT include freight.***
We have had to disable our online checkout feature because most of our products are too large to automatically calculate the freight and need to be run manually. Please contact us via phone at 877-324-9990 or email us at sales@industrial-platforms.com with your ship to zip code for a complete quote including your freight cost.
BAR Series Passenger Ramp

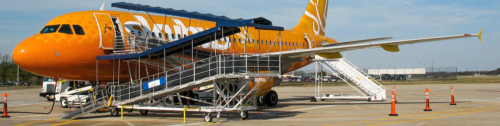

Our BAR Series Passenger Ramps are universal ramps designed to serve larger aircraft such as the MD80 up to the 767. These ramps allow for a seamless boarding process for all passengers. Our BAR ramps, with their aluminum and steel construction, adjustable slope, and level deck with sliding gates, provide a faster, safer and more economical means of boarding and deplaning over conventional stairs.
Features:
| • Combination steel and aluminum construction | • Wheel chalks |
| • Industrial polyurethane foam filled tires | • Stabilizer feet |
| • 36”W Slip resistant walking surface | • Dead man style brake |
| • 5 Year warranty on Safeguard non – skid | • Several sizes available! |
| • 1 Year warranty on electrical component | • AC 150/5220-21C compliant |
| • 2 Year warranty on materials defects and workmanship | |
BAR Ramp Options:
| • Canopy cover |
| • Safeguard Non – Skid |
| • LED Walkway lighting |
BAR Series Ramps meet or exceed the requirements set forth in AC 150/5220-21C.
The BAR Series Ramps are comfortably sloped, non-motorized, and easy to operate. The combination of steel frame and aluminum bridges, non-skid surface, and canopy cover provides strength and versatility. These ramps can be used on all aircraft ranging in height from the MD80 to the B757, or the ERJ170/190 to the B767. We offer several different models of our BAR ramps, to meet all of your needs, including larger aircraft (MD80-757 and ERJ170/190- 767), deployable in less than 1 minute!
BAR3035 Specifications:
The BAR3035 is designed to accommodate larger size aircraft, from the MD80 to the A319/320/321.
Download the spec sheet: here
Aircraft Switchback Ramp BAR3035 Specs |
||
| Length: | 35' |
|
| Height: | 127" (Stowed) | |
| Width: | 119-1/2" (Stowed) | |
| Weight: | Approx. 3,400 lbs. | |
| Wheels: | All pneumatic, industrial foam filled | |
| Brakes: | Automatic ON; Drop lock system | |
| Main Ramp: | 36"W walking surface | |
| Hydraulics: | Optional | |
| Degree of Slope: | Varies, from 10 to 14 Degrees | |
| Range: | 80" to 133" | |
| BAR3035 Pricing | |
| Base Model# BAR3035 | $50,160.00 |
| Safeguard Option | $7,680.00 |
| Canopy Option | $9,120.00 |
| Solar Powered LED Walkway | $7,800.00 |
BAR3040 Specifications:
Specifications: The BAR3040 is designed to accommodate larger size aircraft, from the MD80 to the 757.
Download the spec sheet: here
Aircraft Switchback Ramp BAR3040 Specs |
||
| Length: | 40' |  |
| Height: | 127" (Stowed) | |
| Width: | 119-1/2" (Stowed) | |
| Weight: | Approx. 3,400 lbs. | |
| Wheels: | All pneumatic, Ind. foam filled | |
| Brakes: | Automatic ON; Drop lock system | |
| Main Ramp: | 36"W walking surface | |
| Hydraulics: | Optional | |
| Degree of Slope: | Varies, from 10 to 14 degrees | |
| Range: | 80" to 155" | |
Benefits:
| •Dignified boarding for PRM's | •Safer boarding for children |
| •Virtually maintenance free& 2 year warranty | •Enhances the security of terminal operations |
| •One person operation capability on all models | •General passenger flow 30% faster |
| •Non-corrosive, moisture & fungus resistant design | |
| •No trip hazards, eliminates the risk of falling down stairs | |
| •Passengers board the ramp rather than cue across the apron | |
| •Unique slip resistant flooring in virtually any weather conditions | |
| •Optional extras available including roofing, lighting and branding | |
| •Alleviates the need for Ambu-lift and associated maintenance costs | |
| •Extremely gentle slopes suitable for one person to push wheelchairs | |
| •Dignified boarding for PRM's, boarding with all passengers and not carried upstairs or taken away separately | |
Prior to the introduction of boarding ramps, passengers would board aircraft by walking along a ground-level ramp and climbing a set of movable stairs, or up Airstairs. Mobile staircases or "ramp stairs" are still employed at many smaller airports and terminals supporting low cost carriers. Our BAR Series Passenger Boarding Ramps provides a path in the form of switchbacks from the ground to the aircraft doorsill height. This offers access to aircraft for all passengers, creating a total cost effective boarding solution without the need for traditional Airstairs or high-lift equipment and the associated costs.
Fabrication Authorities International offers ramp solutions that may be be set up to work with nearly any aircraft or jetway configuration. Our ramps are among the most affordable quality products for initial investment and for long-term maintenance. They offer interesting alternatives to jetways, and resolve the issue of having to use separate equipment for disabled people to get on or off the aircraft. Our ramps may include options such as lighting, canopy and side curtains for passenger protection and privacy.
Efficient, reliable and secure systems for loading and unloading passengers are essential. Those systems must also meet the challenge of maintaining flexibility in scheduling varied airlines and aircraft. Fabrication Authorities International has the knowledge of aircraft and equipment expertise to meet your challenges head-on, providing maximum efficiency and flexibility in aircraft layout and ramp utilization. We produce and specialize in ground support equipment, such as ADA compliant passenger boarding ramps. If you have a unique requirement for a specifically designed piece of airport GSE, please contact us to create an efficient custom solution that is just right for you.
Please call for additional options or custom designs.
Fabrication Authorities International, LLC. Is your new “total access” solution.
We can customize most Industrial Maintenance Platforms to your specific needs.
Please call (877) 324-9990 or (727) 324-4620 or (727) FAI-INC-0.
